From HF Radio to Text Messaging at FL450

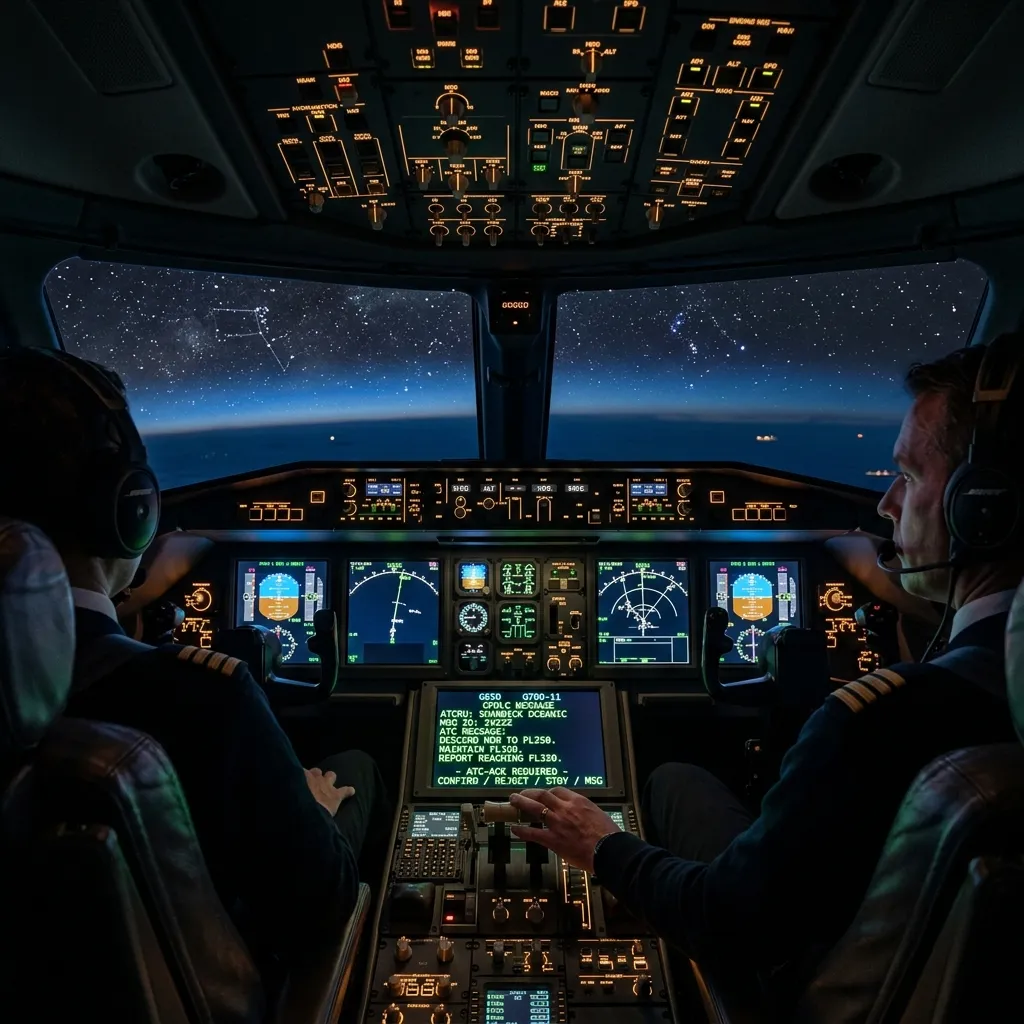

Controller-Pilot Data Link Communications (CPDLC) is a text-based messaging system that allows air traffic controllers and pilots to communicate digitally rather than by voice radio. On oceanic crossings where VHF radio does not reach (the Atlantic, Pacific, and polar routes), CPDLC replaces the scratchy, unreliable HF (high-frequency) radio that has been the primary communication method since the 1940s. A pilot requesting a new altitude sends a text message through the avionics system; the controller responds with a clearance or denial via text.
CPDLC operates under the ICAO FANS 1/A (Future Air Navigation System) standard, which combines data link communications with ADS-C (Automatic Dependent Surveillance-Contract, a position reporting system). Together, FANS 1/A and ADS-C provide controllers with accurate aircraft position data and reliable two-way communications in airspace where radar coverage does not exist. This capability has transformed oceanic operations for business aviation, enabling reduced separation standards, more efficient routing, and improved safety.
How CPDLC Works
The message format is standardized by ICAO, which eliminates the language barrier and interpretation errors that plague voice communications on international frequencies. A Chinese pilot requesting FL410 from a Portuguese controller sends the same standardized digital message that an American pilot sends to Shanwick: the format is universal, the meaning is unambiguous, and the record is permanent.
HF radio over the ocean is notoriously unreliable. Solar activity, atmospheric conditions, and frequency congestion create situations where pilots spend 5-10 minutes trying to establish contact for a simple altitude change. During solar storms, HF communication can be effectively impossible for hours. CPDLC transmits via satellite, independent of atmospheric conditions, with a message delivery reliability exceeding 99.9%. The operational improvement is transformative: what previously required 10 minutes of frustrating radio work now takes 30 seconds of text exchange.
Need a Charter Quote?
Contact our team for a personalized quote.
Get a Quote →Reduced Separation: Flying Closer Together Safely
Before CPDLC and ADS-C, oceanic separation standards required 80-120 NM lateral separation and 2,000-foot vertical separation between aircraft because controllers could not verify aircraft positions in real time. With CPDLC/ADS-C, controllers receive position reports every 10-14 minutes via data link, enabling reduced separation: 30 NM lateral and 1,000-foot vertical. This reduced separation opens more altitude and routing options, which translates directly to fuel savings and ride comfort.
For business aviation, reduced separation means more available altitudes and routes in the North Atlantic Organized Track System (OTS). During peak eastbound crossings (evening departures from the U.S. East Coast), the OTS fills quickly. CPDLC-equipped aircraft can request and receive altitude changes to optimize fuel burn or avoid turbulence, requests that non-equipped aircraft cannot make reliably.
Which Business Jets Have CPDLC
All current-production ultra-long-range and large-cabin business jets (Gulfstream G650/G700, Bombardier Global 5500/6500/7500, Dassault Falcon 8X/6X/10X) are delivered with FANS 1/A CPDLC capability as standard equipment. Many super-midsize jets (Challenger 350/3500, Citation Longitude, Praetor 600) also include CPDLC or offer it as a factory option. Retrofit installations are available for older aircraft through avionics upgrade programs.
- Standard on G650, G600, G500, Global 7500/6500/5500, Falcon 8X/6X: CPDLC is integrated into the primary avionics suite
- Optional or retrofit on Challenger 350/650, Citation X, Legacy 650E: Requires ATC data link unit and Inmarsat/Iridium satellite transceiver
- Retrofit cost: $150,000-$350,000 depending on aircraft type and existing avionics architecture
- CPDLC mandates: North Atlantic airspace at FL350+ requires CPDLC by NAT MNPS/Data Link mandate. Pacific airspace mandates vary by region.
Non-CPDLC-equipped business jets can still cross the Atlantic, but they must use HF radio and comply with wider separation standards. This often means less desirable altitudes and routes, higher fuel burn, and longer flight times. The operational penalty for flying non-equipped is significant enough that most operators who regularly cross the Atlantic invest in CPDLC retrofit regardless of the aircraft's age.
